Cable Management System Cable Tray Galvanized Steel Customizable Size Outdoor Cable Tray
Product Description

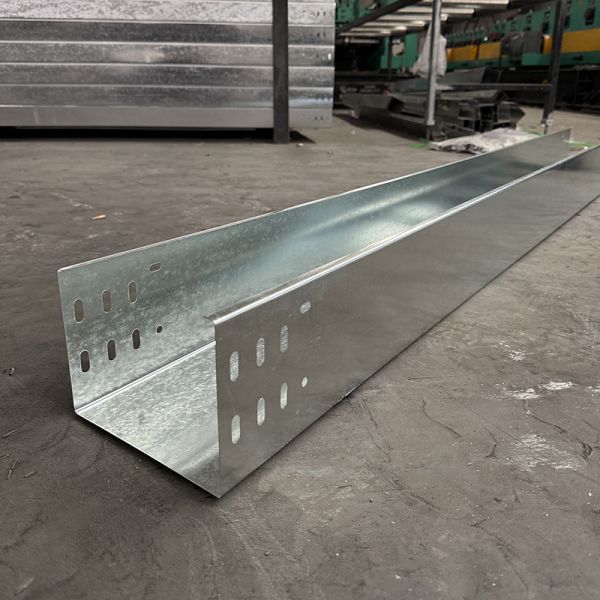

Galvanized cable tray is a metal structural component used to support and fix cables and wires, with its surface treated with galvanizing. The galvanizing process is mainly used to prevent the bridge from rusting in humid and corrosive environments, thereby improving its durability and service life. The galvanized layer can effectively isolate the bridge substrate (such as steel) from contact with moisture and oxygen in the external environment, reducing the possibility of corrosion.
Features
Durable and Easy to Install: This cable tray system is designed to withstand the rigors of electrical applications, offering a durable solution for cable management. Its ease of installation makes it an ideal choice for users who value convenience and efficiency.
Customization Options: The product offers a wide range of customization options, including varying widths (50mm-1000mm), side rail heights (12-200mm), and lengths (1000mm-6000mm). This flexibility allows users to tailor the product to their specific needs.
Technical Parameters
| Product type | Ladder Cable Tray/Channel Cable Tray/Perforated Cable Tray |
| Material | Hot-dip galvanized /stainless steel/ fireproof spray /aluminum alloy |
| Surface Treatment | Pre-Gal/Electro-Gal/Hot dipped galvanized/Powder coated/Polishing |
|
Size
| Width | 50-1200mm |
| Side rail height | 50-300mm |
| Length | 2m-6m |
| Thickness | 0.3-3.0mm |
|
Steel Thickness (Recommend)
| 1.00mm - 50*25mm, 75*75mm |
| 1.2mm-100*50mm, 150*100mm |
| 1.5mm -200*100mm, 300*150mm, 400*150mm,500*150mm |
| 2.0mm-600*200mm, 700*200mm |
| 2.5mm-800*200mm |
| As customer requirements |
| Usage | 1.Support Cables 2.Protect Cables 3.Manage Cables |
| Certification | ISO9001/CCC/CE/UL/CUL |
| Feature | Corrosion Resistance |
| Loading Test | Our wire mesh cable tray meet the standards requirements of IEC61537 and NEMA VE-1 |
| Non standard specifications are availabe according to customers' requirement |
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shippment.
